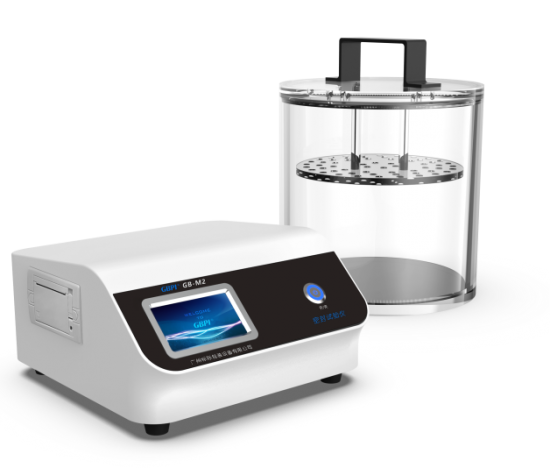

equipo de prueba de envases flexibles probador de sellado hermético probador de fugas GB-M

probador de fugas Para probar la calidad y el rendimiento del sellado hermético de bolsas de embalaje, botellas, latas, etc., que se utilizan en las industrias de alimentos, bebidas, productos farmacéuticos, cuidado personal, etc.









  • Marca:

    GBPI
  • Artículo No.:

    GB-M
  • Origen del producto:

    CN
  • Puerto de embarque:

    Guangzhou
Pregunte ahora
Detalle del producto


normas

ASTM d 3078, GB / T 15171

caracteristicas

u aire comprimido como fuente de energía, programado para generar vacío.

u totalmente automático, vacío automático y mantenimiento durante el tiempo establecido, parada automática y retorno.

u alta velocidad, alta precisión.

Puede pausar y detener manualmente.

especificaciones

grado de vacío

0 ~ -90Kpa

precisión de vacío

± 1% del valor mostrado

tiempo de mantenimiento de vacío

0,01 s ~ 99,99 h

fuente de gas

aire comprimido, 0.7 ~ 0.8Mpa

tamaño de la cámara de vacío

Φ 270 mm × 270 mm

tamaño del instrumento

300 mm × 430 mm × 500 mm

peso

20 kg

poder

100W

fuente de alimentación

ac 220V 50Hz

configuración

cuerpo principal de la máquina, cable de alimentación, barril de vacío

usuario proporcionar: fuente de gas
