Stand-up pouches, retort bags, sachets and multilayer films are engineered to keep moisture, oxygen and aroma exactly where they belong. A barrier value that's off by a fraction, or a seal that's a few microns thinner than spec, can shorten shelf life, trigger a recall, or fail a customer's incoming-goods inspection. Testing that structure before it leaves the plant — not after a complaint — is the core job of the instruments below.
Water vapor and oxygen ingress that isn't caught in QC shows up later as spoiled product, off-flavors, or oxidized contents.
Inconsistent heat-seal strength or hidden channel leaks lead to field failures that are expensive to trace back to a single production run.
Brand owners, retailers and export markets increasingly require documented test data against ASTM/ISO standards before they'll approve a packaging supplier.
These are the properties GBPI instruments are built to measure across film, laminate and finished pouch formats — the same parameters referenced in most customer specifications and retort/food-contact qualification packages.
| Property | Why it's tested | Reference standards | Recommended instrument |
|---|---|---|---|

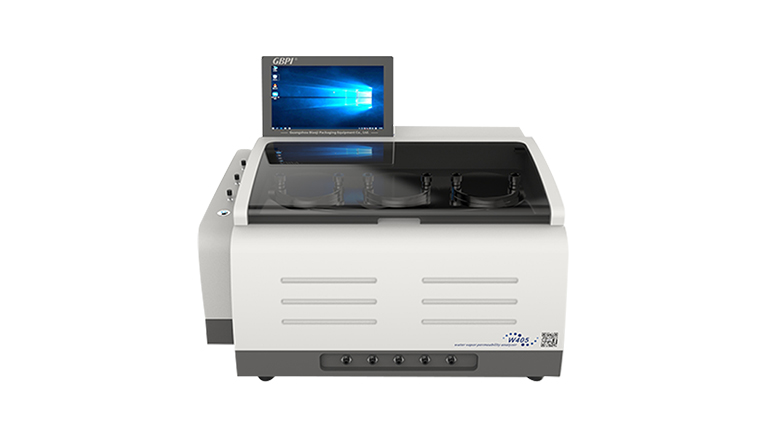

| Water Vapor Transmission Rate (WVTR) | Predicts moisture-driven shelf-life for dry foods, snacks, powders and pharma blister/pouch formats | ASTM F1249 / E96, ISO 15106 | Water Vapor Permeability Analyzer |
| Oxygen Transmission Rate (OTR) | Determines oxidation risk for fatty foods, coffee, MAP-packed meat and beverages | ASTM D3985, ISO 13274 | Oxygen Permeability Analyzer |
| Gas Transmission Rate (CO₂/N₂, etc.) | Verifies barrier performance for carbonated beverages and modified-atmosphere packaging | ISO 2556, ASTM D1434 | Gas Permeability Analyzer |
| Heat-Seal Strength | Confirms seal integrity across the sealing window used on the production line | ASTM F2029 / F88, ISO 11607-2 | Laboratory Heat Sealer + Tensile Tester |

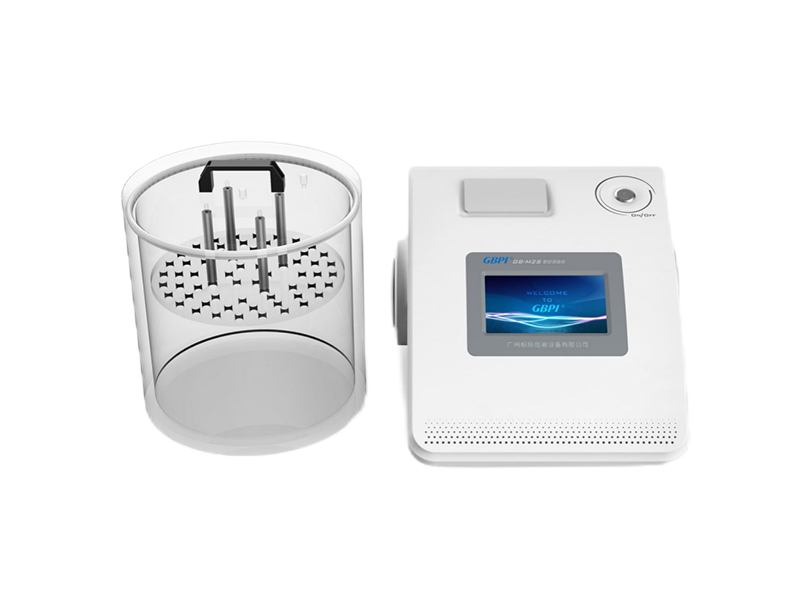

| Package Leakage / Seal Integrity | Detects pinholes, channel leaks and weak seals on finished pouches before shipment | GB/T 15171, ASTM D3078 | Leakage Tester |

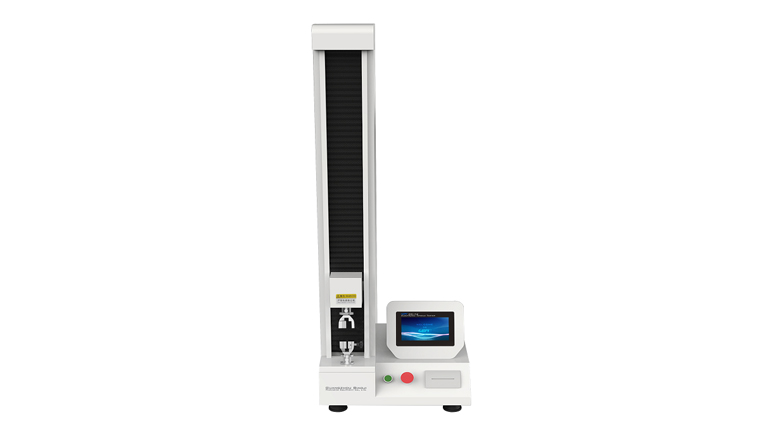

| Tensile Strength & Elongation | Verifies film can withstand line tension, drop and handling without tearing | ASTM D882, ISO 527-1 | Tensile Tester |
| Coefficient of Friction (COF) | Ensures reliable feeding, forming and stacking on packaging/filling lines | ASTM D1894, ISO 8295 | Coefficient of Friction Tester |
| Puncture & Impact Resistance | Predicts survival through distribution — drop, stacking and transit abuse | ASTM D3420 / F1306, ISO 6603 | Falling Dart Impact Tester |
| Film Thickness & Uniformity | Confirms gauge consistency, which underlies every other physical and barrier result | ASTM D374, ISO 4593 | Thickness Tester |
| Residual Solvent & Odor | Screens printed/laminated film for solvent taint before it reaches food contact | Internal GC method, ASTM E679 | Gas Chromatography |
The same core test set applies across industries — what changes is which properties matter most and which standards a customer or regulator expects to see.
Stand-up pouches, retort bags, MAP trays and flow-wrap film — WVTR, OTR and seal strength drive shelf-life claims.
Blister laminate, sachets and strip packs — barrier and seal data support stability filings and ISO 11607 qualification.
Spouted pouches and juice/oil sachets — gas barrier, spout-seal integrity and drop resistance are the priority tests.
Sachets, refill pouches and laminate tubes — seal strength, COF for line runnability, and barrier for actives.
A typical flexible packaging QC lab builds around a barrier tester, a tensile/seal tester and a leak tester. These three cover the majority of specification and customer-audit requirements.
The exact applicable standards depend on the instrument model and test method selected — confirm the specific standard for your product with our team before specifying.
